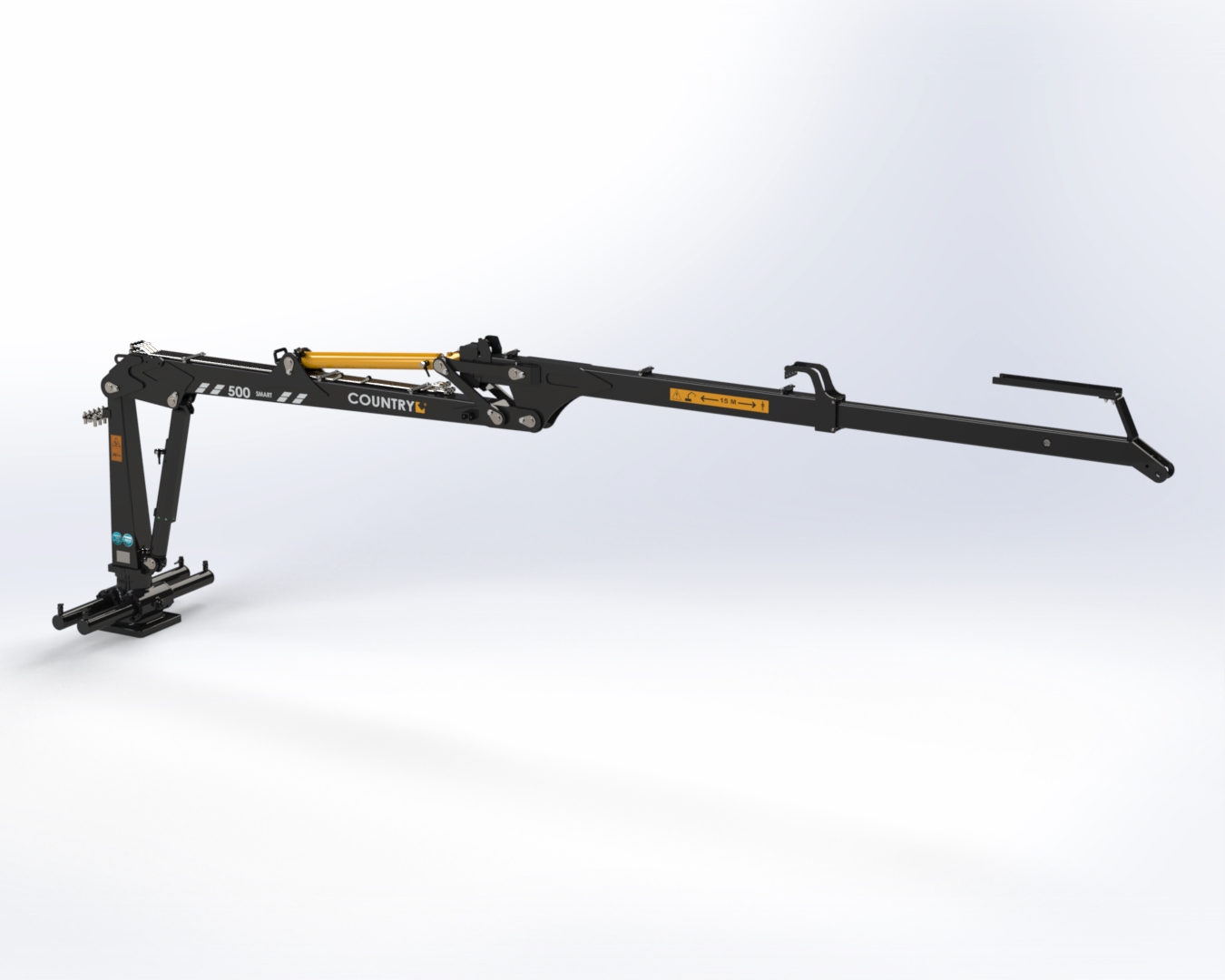

500 SMART |
| Max reach (m) |
5.0 |
| Lifting torque gross (kNm) |
23 |
| Lifting capacity at 3,5 m (kg) |
550 |
| Lifting capacity at full reach (kg) |
382 |
| Slewing torque (kNm) |
6.3 |
| Slewing cylinders (pcs) |
4 |
| Slewing angle |
370 |
| Rotator max axial load (kN) |
30 |
| Telescopic boom stroke length (m) |
1.1 |
| Working pressure (bar) |
180 |
| Crane's weight without support legs and valve block (kg) |
315 |
| Recommended pump capacity (l/min) |
15-30 |
| Support legs type |
A or FD |
| A type (telescopic) support legs weight, kg |
92 |
| FD type (flap down) support legs weight, kg |
91 |
| Recommended grapple size (m2) |
0.12 |
